Executive Series PartnersDesk
11'7"w x 6' 2" h x 2'4" d

The OFFICE, Executive series PartnersDesk model melds ergonomic computer use capabilities with practical function, yielding a custom computer furnishing solution with specialized security and protective finish characteristics for two individual computer users.

Both user positions include an electric key lock for equipment protection; powered adjustable monitor height, slide out keyboard/mouse platforms, ease of equipment and network connection.

Areas displayed in bright white on images below denote:
Raise/lower Summerlift mechanism for monitor, pull out file drawers, equipment sliders
and pull-out keyboard trays, flip-up desktops for chair storage, and 5 pocketed doors.
The over-desk shelving is height adjustable.
Pocket doors may be left extended when desired for systems level sound attenuation.

Base price of this model is $14,700. F.O.B. factory
FINISH STAIN COLOR SELECTIONS

Mahogany
Cherry
Medium Oak
Light Oak
Washed Maple
Specification Abstract
 Click-On Reference:
illustrating various configurations and finishes:
The Executive
Manufacturing
Crafted in the U.S., Summerland’s manufacturing complies with all applicable federal, state and municipal laws, codes and regulations regarding or pertaining to the operation of plants. All manufacturing pursuant to the requirements of this specification conforms to high professional standards and complies with best trade and industry practices.

The OFFICE  model units withstand temperatures up to and including 140 F and are resistant to:

 Cabinetry
1. Cabinetry has physical characteristics per USCS45-60 with finished veneer exteriors.  The cabinetry substrate is multi-ply 3/4" plywood having physical characteristics per USCS45-60.
2. No Particle Board, MDF or other compressed materials are used.
3. Interior surfaces, desktop and keyboard tray are finished with high-pressure laminate applied and adhered in accordance with manufacturer’s recommendation  without discoloration, bubbles or raised areas; all joints shall be without visible gaps; edges without damage, fraying, rips, drill holes or other fabrication-caused marks.
4. All exposed cabinetry edges are edge-banded (internal surfaces) or hardwood finished (exterior).
5. Screw covers enclose exposed screws on the interior surfaces.
6. Exterior Finishes are applied in accordance with OSHA and Environmental guidelines, codes, regulations and standards.

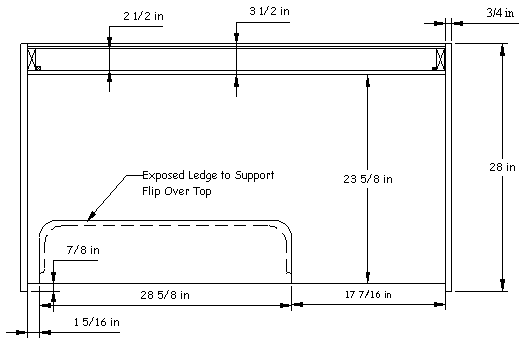

                                                  Desk Top PLAN view showing false back


SHEET METAL
1. Sheet metal components are fabricated from 1018 CRS (cold rolled pickled and oiled sheet stock) in accordance with ASTM A366  16 gage.
2. All metal parts are cadmium or equal electroplated for corrosion protection prior to application of final powder coat finish.
3. Sheet metal parts are smooth, without sharp edges; all welds are smooth.

ELECTRICAL and DATA CABLING
1. Electrical power (110v) input is brought to a surge protected power strip located within the false back. The CPU & Monitor are powered through a UPS. A single power switch control activates CPU and monitor. (The UPS remains on).
2. Monitor lift power is activated with a key switch for security and use control.  Limit switches prevent over travel of the lifts.
3. Monitor power and data cables are easily connected within the false back behind the monitor/ CPU compartment.
4. Keyboard and mouse cables feed through a port to the keyboard/mouse pullout tray.
5. All electrical components are UL approved and comply with applicable portions of the N.E.C..
6. All wiring and connector installation and assembly practices conform to highest industry standards and fully comply with ANSI, GSA, CSA (Canada), NEC, NEMA, NFPA, OSHA, UL (Hospital Grade High-Abuse) and Southern Building Code standards and specifications  for continuous 15 Amp service.

SHIPPING and INSTALLATION
Shipment is made of three units PLUS the crown molding and optional chairs/accessories. The units are shipped to a local moving company. They uncrate and deliver the units to your home or office. Pocket doors are shipped installed. Installation consists of joining the three sections. Joining is accomplished with eight (8) 5/16" furniture bolts (included) per section; placing the crown molding (requires two people because of its length) and installing fastening screws (provided).

The joined unit is raised on its Lift and Roll units ; the outer back is removed to reveal the false back and computer and peripheral equipment is installed. The unit is then positioned and Lift & Roll units lowered.
